DSM
모니터 후면을 파티션을 설정을 통해 직접적으로 가려주는 제품입니다.
규격 사이즈 : (W)600, 1200, 1800 X (D)1000 X (H)770/1200 (Size Custom 제작은 Wide는 600~2000, Deth는 950~1200 까지 가능함)
※ 제품사양 ※
명칭 | 주문형 철재 콘솔데스크 | |||
제품명 | DSK | |||
재질 | 본체 | 1.2T Steel Plate (지정 Color 분체 도장) | ||
전면부 | 1.2T Steel Plate 타공 레이저 가공 (지정 Color 분체 도장) | |||
후면부 | 1.2T Steel Plate 타공 레이저 가공 (지정 Color 분체 도장) | |||
앞상판 | 30T MDF (지정 Color & Pattern HPM / High Pressure Melamine) | |||
파티션 | 30T MDF (지정 Color 우레탄 도장) | |||
측면판 | 20T MDF (지정 Color 우레탄 도장) 3T MDF (지정 Color & Pattern HPM / High Pressure Melamine) |
|||
하드웨어 | PVC 6구 멀티콘센트 / 홀캡 / 6P 동부스바 / 170mm X 70mm 하부 고무 타공 덮개 (기본제공) |
※ 모바일에서는 화면에 보이는 제품사양을 좌우로 움직여 보세요

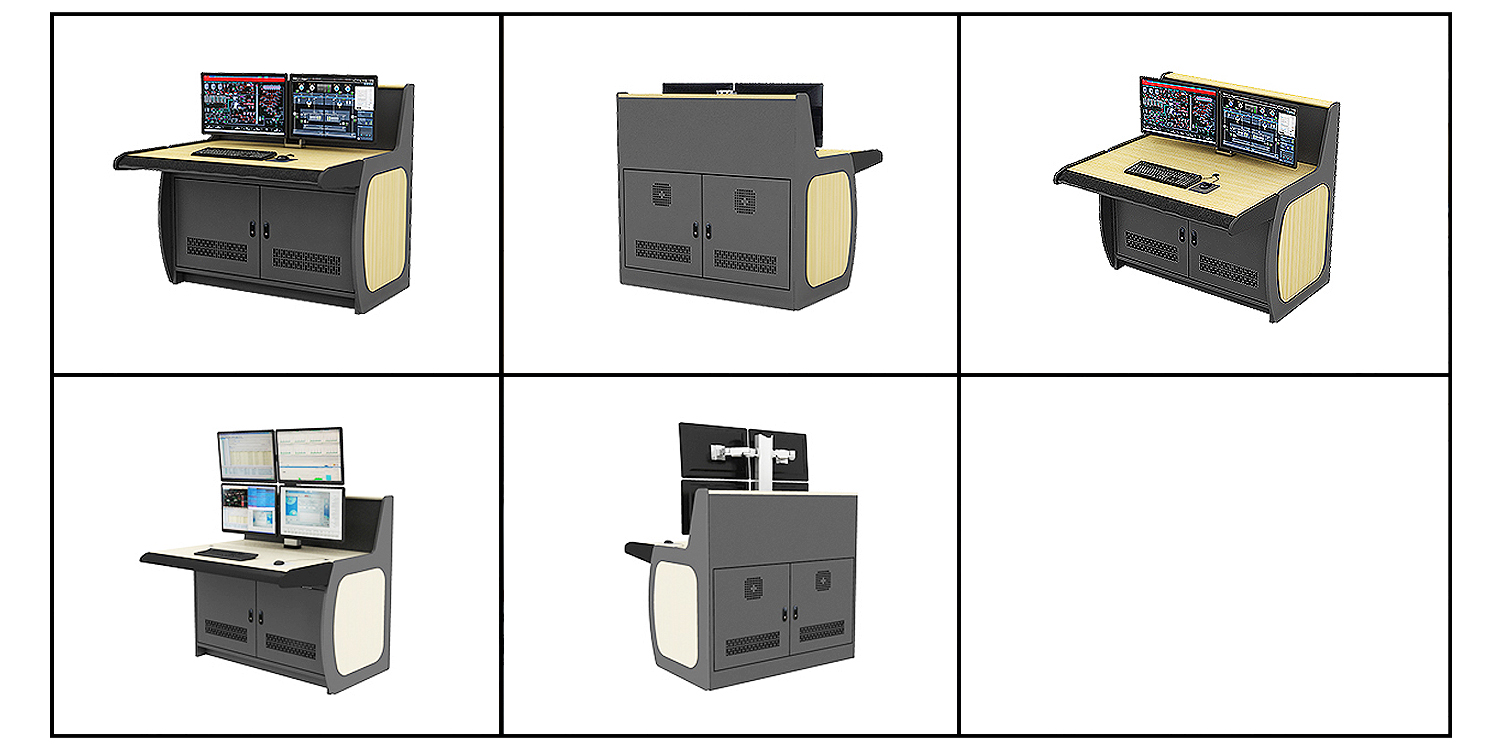

※ 응용 Application ※
![제품 DSM 01](http://d-in.co.kr/wp-content/uploads/2021/04/제품-DSM-01.jpg)

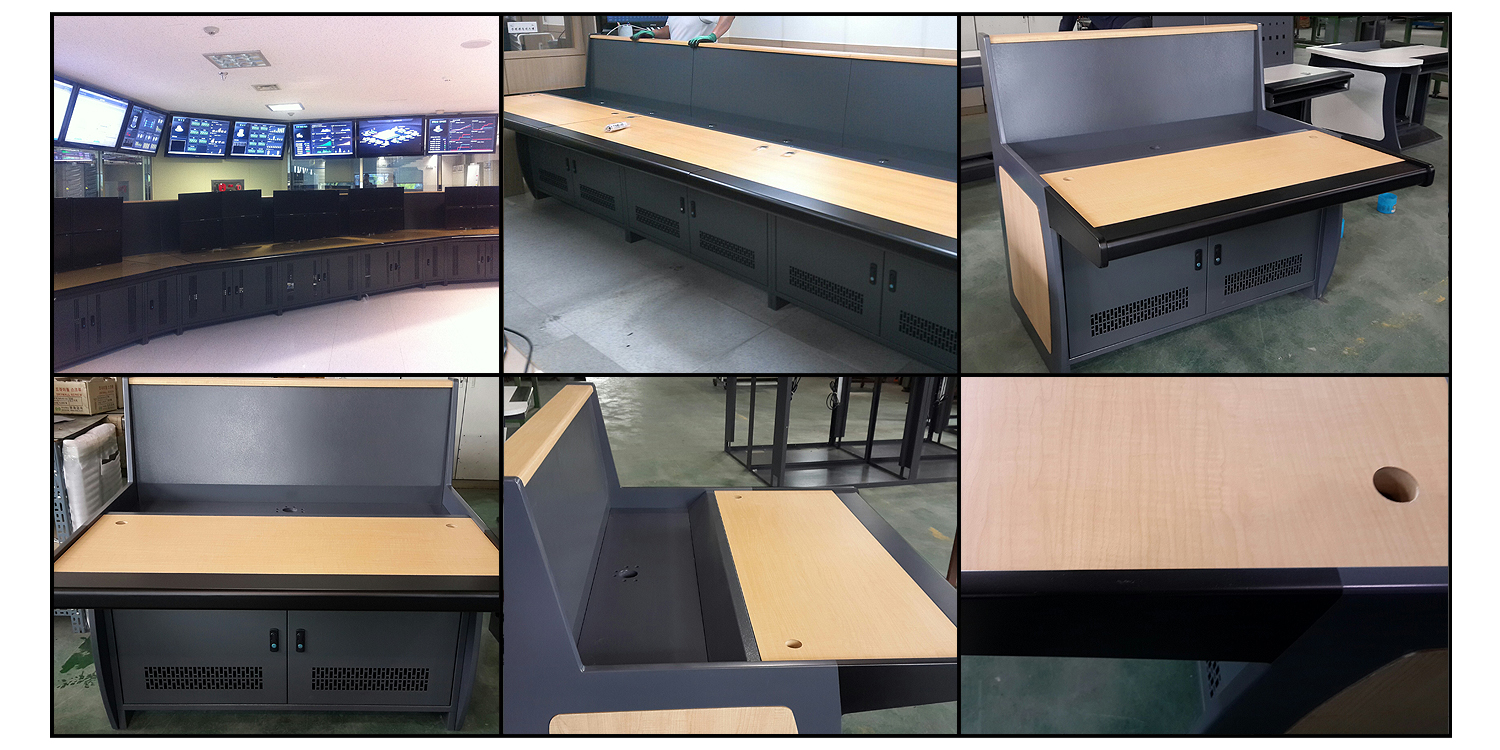

※ 설치사례 Example ※
![제품 DSM 02](http://d-in.co.kr/wp-content/uploads/2021/04/제품-DSM-02.jpg)
MATERIAL
Pattern Malamine(MDF HPM)
![Melamine_Airport 02](http://45.32.141.115/wp-content/uploads/2021/01/Melamine_Airport-02.jpg)
AIRPORT
(Malamine)
![Melamine_Maple](http://45.32.141.115/wp-content/uploads/2021/01/Melamine_Maple.jpg)
MAPLE
(Malamine)
![Melamine_Pastel Oak](http://45.32.141.115/wp-content/uploads/2021/01/Melamine_Pastel-Oak.jpg)
PASTEL OAK
(Malamine)
![Melamine_Melonstone](http://d-in.co.kr/wp-content/uploads/2021/01/Melamine_Melonstone.jpg)
MELONSTONE
(Malamine)
Solid Color Malamine(MDF HPM)
![Melamine_Lite Gray](http://45.32.141.115/wp-content/uploads/2021/01/Melamine_Lite-Gray.jpg)
LIGHT GRAY
(Malamine)
![Melamine_Dark Gray](http://45.32.141.115/wp-content/uploads/2021/01/Melamine_Dark-Gray.jpg)
DARK GRAY
(Malamine)
![Melamine_Ivory](http://45.32.141.115/wp-content/uploads/2021/01/Melamine_Ivory.jpg)
IVORY
(Malamine)
![Melamine_Pantone Blue](http://45.32.141.115/wp-content/uploads/2021/01/Melamine_Pantone-Blue.jpg)
PANTONE BLUE
(Malamine)
Powder Coating Paint Color Chip (Steel Paint)
![POWDER COATING_Off White_WH062](http://45.32.141.115/wp-content/uploads/2021/01/POWDER-COATING_Off-White_WH062.jpg)
OFF WHITE
(Steel Paint)
![POWDER COATING_Light Gray_RAL7035](http://45.32.141.115/wp-content/uploads/2021/01/POWDER-COATING_Light-Gray_RAL7035.jpg)
LIGHT GRAY
(Steel Paint)
![POWDER COATING_Dark Gray_BK024(RAL7016)](http://45.32.141.115/wp-content/uploads/2021/01/POWDER-COATING_Dark-Gray_BK024RAL7016.jpg)
DARK GRAY
(Steel Paint)
Urethane Paint Color Chip (MDF Paint)
![URETHANE PAINT_Off White_WH062](http://45.32.141.115/wp-content/uploads/2021/01/URETHANE-PAINT_Off-White_WH062.jpg)
OFF WHITE
(MDF Paint)
![URETHANE PAINT_Light Gray_RAL7035](http://45.32.141.115/wp-content/uploads/2021/01/URETHANE-PAINT_Light-Gray_RAL7035.jpg)
LIGHT GRAY
(MDF Paint)
![URETHANE PAINT_Dark Gray_BK024(RAL7016)](http://45.32.141.115/wp-content/uploads/2021/01/URETHANE-PAINT_Dark-Gray_BK024RAL7016.jpg)
DARK GRAY
(MDF Paint)
※ 사용하시는 모니터에 따라 다소 색상 및 소재의 패턴이 실제 제품과 차이가 있을 수 있습니다. ※
OPTION
